Flat Die Wood Pellet Making Machine / Industrial Wood Pellet Mill

Model Number : FR

Certification : ISO/CE

MOQ : One Set

Price : NEGOTIABLE

Payment Terms : T/T,L/C,Western Union,Trade Assurance

Supply Ability : 100SET PER MONTH

Delivery Time : WITHIN 7-10 WORK DAYS

Packaging Details : Sea worthy Wooden Case

model : FR-420 wood pellet making machine

capacity : 800-1400kg/h

power : 90kw

force feeder : 1.5kw

feeder : 1.5kw

die diameter : 420mm

Dimension : 3200*1100*1700mm

pellet size : 6-12mm

Contact Now

CE approved falt die wood pellet making machine/wood pellet mill

Raw Material:

1.Wood waste,scobs,branch,palm tree,sugarcane residue,sawdust,medical slag,hay,discarded edible fungus bags.

2 Bean stalk,wheat stalk,corn stalk,cotton stalks,sunflower stalks,mustard stalk,rice stalks,coffee husk,cotton shell,peanut shell,rice shell,coconut shell.

3 Livestock and poultry's waste,tea waste,tea waste,forestry wastes,forestry wastes,wood chips and many other organic waste resources.

Characters

1. the wood pellet machine can press biomass such as sawdust, straw and rice husk pellet.

2. adopting coldpressing molding technology, polishing process. Beautiful appearance, compact structure.

3. using special high quality materials and advanced even shaft driving device, the key components are high quality alloy steel with wear-resisting material, using German vacuum heat treatment furnace, will span the working life to five to seven times.

Technical of ring-die wood pellet machine

Model	FR-320	FR-350	FR-400	FR-420	FR-508	FR-558
Capacity	0.2--0.4t/h	0.4--0.6t/h	0.5--1.2t/h	0.8--1.4t/h	1.5--2.0t/h	2.5- 3.0t/h
Main Power	37 kw	55 kw	75 kw	90 kw	132 kw	160 kw
Force feeder power	1.1 kw	1.1 kw	1.5 kw	1.5 kw	1.5 kw	1.5 kw
Feeder power	0.75 kw	1.1 kw	1.1 kw	1.5 kw	1.5 kw	1.5 kw
Die Diameter	φ320mm	φ350mm	φ400mm	φ420mm	φ508mm	φ558mm
Dimension(mm)	2100x800 x1300	2200x900 x1500	2300x1000 X1700	3200x1100 x1700	3200x1300 x1900	3500x1500 x2800
pellets size(mm)	φ6.0,φ8.0,φ10.0,φ12.0

Flat Die Wood Pellet Making Machine / Industrial Wood Pellet Mill

Welcome to contact us more detail of flat die ood pellet making machine/wood pellet mill

Product Tags:

extruder pellet machine

wood pellet processing equipment

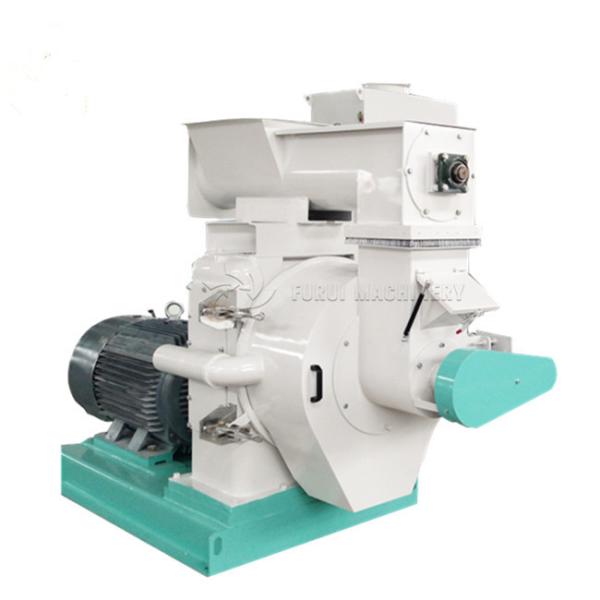

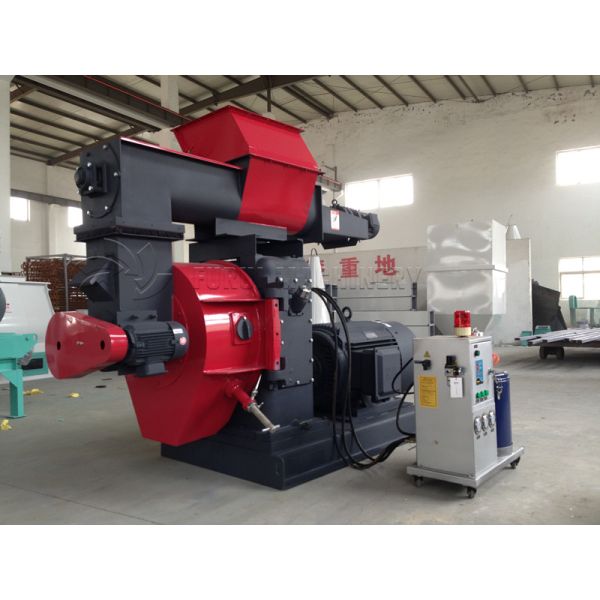

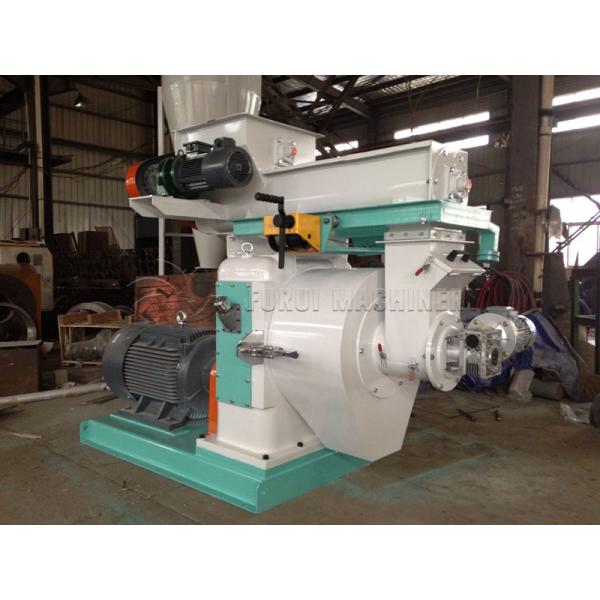

Flat Die Wood Pellet Making Machine / Industrial Wood Pellet Mill Images
